Benchtop CNC Router

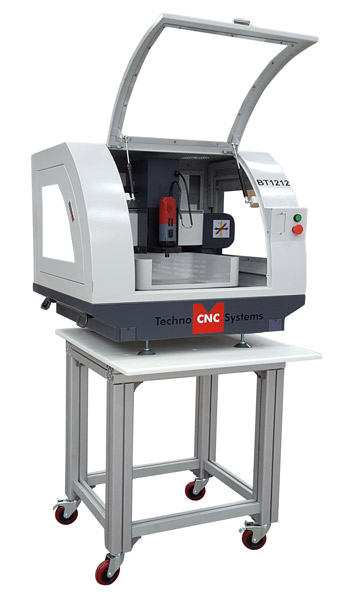

The BT1212 Benchtop CNC Router is a small compact tabletop router that includes a 1 HP router, full safety enclosure, aluminum t-slot table and is driven by brushless stepper motors and drives. The controller is Techno’s ever-so-popular and easy-to-use hand-held controller. Ideal for small part production, prototyping, model making, engraving, woodworking, signage and educational applications. The BT1212 is a tabletop CNC router powered by brushless stepper motors. It is operated with an easy-to-use hand-held controller and is compatible with industry standard G and M codes. The Techno BT1212 is a sturdy machine for precision routing. Its compact size allows it to fit almost anywhere.
FEATURES:
- Precision Ball Screws on all three axes
- 800 Watt (1 HP) Kress variable speed spindle 8,000-24,000 RPM
- Brushless sstepper motors and drives
- Aluminum t-slot table
- Compatible with industry standard G code and M code
- Heavy duty construction
- Easy to use hand held controller
HD Mini

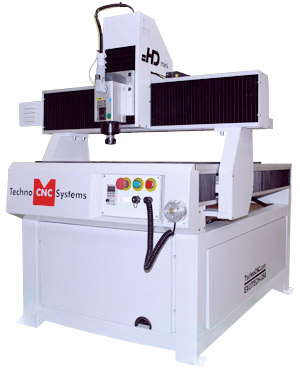

The HD Mini is a heavy duty CNC router that is an affordable CNC work platform. Ideal for any size shop requiring a compact machine to run small routing jobs or to be used as an educational tool, these CNC router applications can include musical instruments, sign works, artistic carvings, and drilling, using wood, plastic, fiberglass, metal or other routable materials being able to fit on the 2′ x 3′ cutting table size. The HD Mini features ball screw drives on all three axes and is controlled using a Techno easy-to-use hand-held micro stepper controller. The controller can run industry standard G and M codes or dxf file formats. The moving gantry provides a stationary work surface and save valuable floor space.saves valuable floor space. .
FEATURES:
- 2' x 3' Process area
- 2 HP HSD high frequency collet spindle
- Aluminum T-slot table for easy part fixturing
- Automatic tool calibration pad
- Brushless micro stepper motors and controls
- Linear rails and bearings
- Precision ball screws on all three axes
HD Series
The HD Series CNC Router is manufactured using the highest quality industrial grade CNC router components with all steel construction with a 7-1/2” gantry clearence and z-axis stroke. Key features include THK linear guide rails and bearings, precision helical rack and pinion with precision gear motors directly coupled to the helical pinion. The HD series includes a 4 HP HSD collet spindle, vacuum hood with concentrated air flow at the tool, and a vacuum t-slot table controlled by a central gate valve.
FEATURES:
- 4'x 4, 4'x 8' and 5' x 10' Stock sizes (Special sizes available upon request.)
- 4 HP HSD high frequency collet spindle
- Aluminum T-slot table for easy part fixturing
- Automatic tool calibration easy and accurate "Z" zero position for single and multiple tool changes
- 4 - Zone vaccum table
- Easy-to-use hand held micro-stepper controller
- Maintenance Free precision brushless stepper motor drives
2136 Plasma
Techno is proud to introduce the HD-II 2136 CNC Plasma, a compact version of a full-scale CNC plasma system that can be implemented in a production environment or educational setting. The machine is available with an optional safety enclosure and stand. It can be easily transported around the facility to any convenient location.
FEATURES:
- 20.5” x 36” Process area
- Precision ball screws on all three axes
- Hypertherm Torch
- Brushless micro stepper motors and controls
- Automatic torch height control
- Stainless steel water tray with verical grid
- Linear rails and bearings
- PC based WinCNC
