Levil Technology Products

We are dedicated to the design and production of tabletop CNC machines that have a broad array of users across many industries. Unlike many tabletops out there, our machines are able to reach incredible precision and high speeds thanks to our servo-controlled technology. Not only are they capable of machining, but they can also digitize, change, and measure tools automatically, perform CAN cycle, and much more, using a simple to use Windows-based software or industry-proven FANUC control.

The FANUC Education Training Carts incorporate FANUC’s latest industrially recognized CNC control platform, with AC servo motors and drives in a self-contained, portable milling or turning center. Take the training where you need it…. on the plant floor, in the classroom, or even at a remote site. Use the Education Training Carts to teach students or employees how to program and operate a real CNC, in real-time, in a safe, controlled environment.

Overall Benefits

• Industry-standard components
• Teaching principles of CNC programming, setup, and operation
• Compact and portable
• Affordable training solution

EDU-Mill

LOW-INERTIA CNC MACHINE WITH METAL 3D PRINTING
The EDUMiLL is a revolutionary system that incorporates technologies from the additive and subtractive manufacturing fields to open the door to a new world of possibilities and further innovation by making it affordable to include a 3D printer and a robust CNC mill in one package

Specifications:

• Servo motors: 130W brushless AC type for X, Y, and Z axis, 6000 rpm
• Travel X 7” (178 mm), Y 10.5” (267 mm), Z 5” (127 mm)
• Rapid feed 400 ipm (10,200 mm/min)
• Accuracy 0.0004” (0.01 mm)
• Worktable size – 14.5” x 9.8” (370 x 250 mm)
• Dimensions W 27.5” (0.7 m), D 33.5“ (0.85 m), H 41.5” (1.05 m)
• Weight 300 lbs. (136 kg)
• Power 110-220 VAC, 15 A
• Steel enclosure
• Large door for easy access to machining area
• Large side windows to monitor machining processes
• Fits through a standard doorway
• Optional stand with casters for easy relocation

LMV-300

Its versatile design makes the LMV-300 a perfect choice for several different industrial applications including medical/dental printing, automotive customization, and jewelry shops, just to name a few.

Specifications:

• Granite and aluminum body
• Servo controlled
• 14.5” (370 mm) X axis travel
• 9.4” (240 mm) Y axis travel
• 8” (205 mm) Z axis travel
• Precision 0.0004” (0.01 mm)
• Rapid feed (X, Y & Z) 400 ipm (10,200 mm/min)
• Cutting feed (X, Y & Z) 240 ipm (6,120 mm/min)
• Spindle speed 100 – 14,000 rpm (up to 100K available)
• Spindle 2 hp
• Power supply 220 VAC 20 A
• Dimensions W 48”x H 72” x D 52 1/2” (with machine stand)
• Linear guideways on each axis
• Direct drive on all axis

LMV-400 CNC

VERTICAL MILL
One of our best-selling machines, the LMV-400 is ideal for small shops who want to add VMC functionality within a limited space.

Specifications:

• Aluminum Body Servo Controlled
• 16.5” (421mm) X axis travel
• 8.5” (217mm) Y axis travel
• 7.5” (190mm) Z axis travel
• Precision 0.0004” (0.01mm)
• Rapid Feed (X, Y & Z) 400ipm (10,200 mm/min)
• Cutting Feed (X, Y & Z) 118 ipm (3,000 mm/min)
• Spindle speed 100 – 14,000 rpm (up to 100K available)
• Spindle 2 hp
• Linear guideways on each axis
• Direct drive on each Axis
• Fits through a standard 35” doorway
• Power 110 VAC 15A
• Dimensions W 33”x H 68” x D 37 “ (With machine stand)
• FANUC 0i-F Control

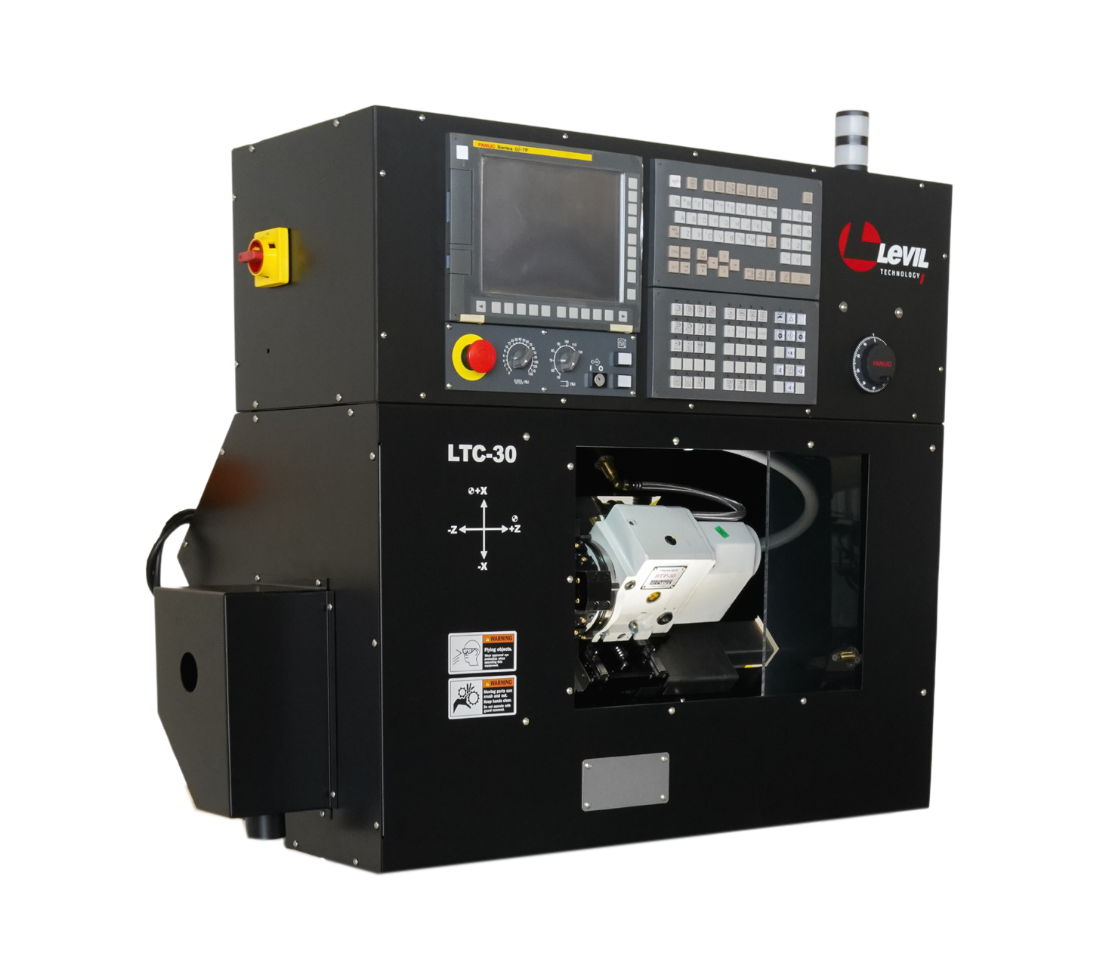

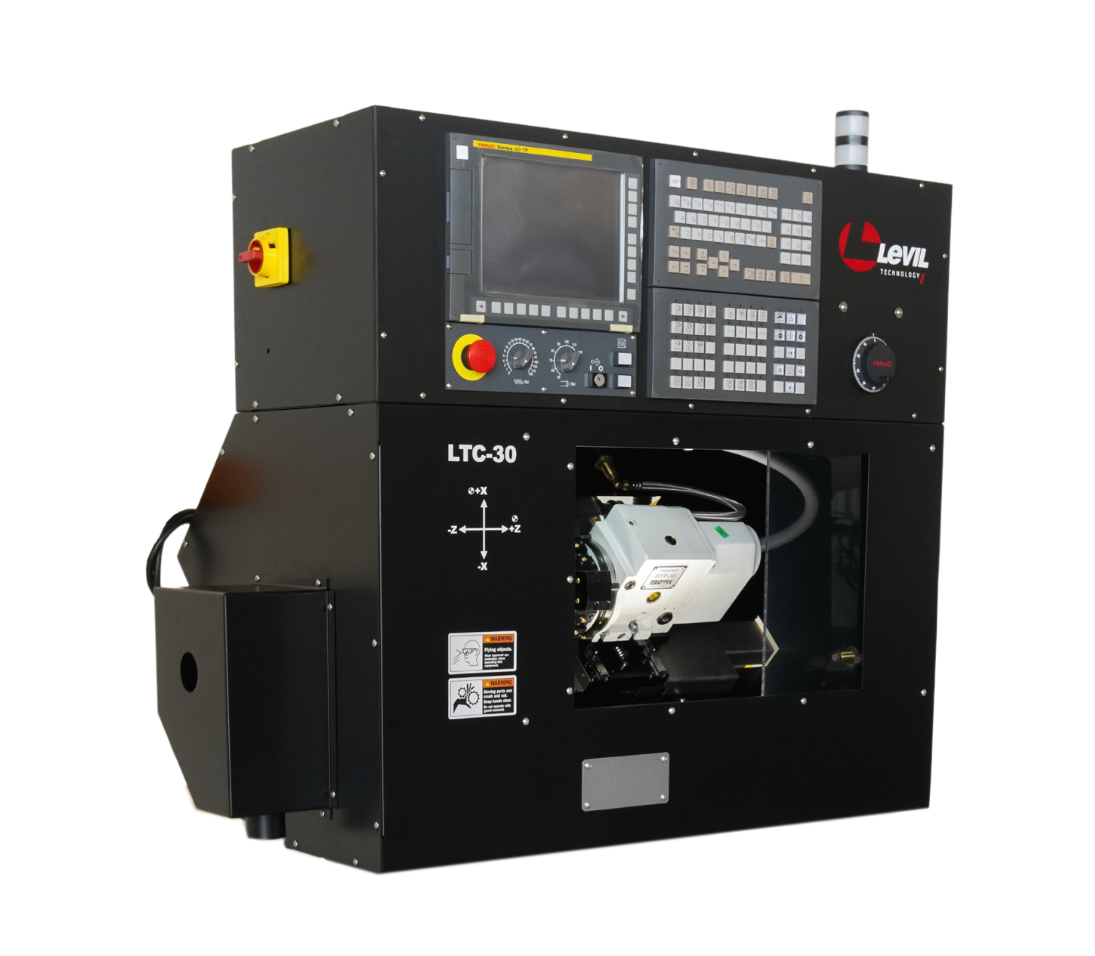

LTC-30 Series

The LTC-30 is a compact yet powerful CNC turning machine perfect for any instructor looking to provide students with a capable teaching tool within a small classroom.

Specifications:

• Direct drive on X and Y axis
• Linear guideways on each axis
• Aluminum body
• Granite base
• Servo Controlled
• 8 Gang Style OD Cutting Tools
• 10 position tool rack for milling
• Preloaded Ball Screws
• 8 Gang Style ID Cutting Tools
• LS-32-c Standard Spindle
  • 3,000 RPM, 2HP Air-cooled
  • Includes 4” Chuck, Self-centering 3 Jaw
  • LS-32-C-220 High Speed Spindle
    • 4,500 RPM, 2HP Air-cooled
    • Includes 4” Chuck, Self-centering 3 Jaws
    • Requires 220 VAC

LMT-300

THE LMT-300 ”Mystique” 5 AXIS MILL-TURN
The LMT-300 is the perfect solution for
instructors who require a robust cutting machine inside of a compact footprint.

Specifications:

• Direct drive on X and Z, belt drive on Y axis
• Linear guideways on each axis
• Aluminum body
• Granite base
• Servo controlled
• 4 Gang Style OD Cutting Tools
• 10 position tool rack for milling
• Preloaded
• 4 Gang Style ID Cutting Tools

LMH-300

HORIZONTAL MILL – UP TO 5 AXIS
the LMH-300 is a robustly capable machine, perfectly at home in a wide-range of manufacturing shopsThe LMH-300 is a compact and powerful CNC machine, providing all the advanced features you would expect from larger industrial machines.

Specifications:

• Travels: X= 390mm (15.3”), Y= 170mm (6.5”), Z=240mm (9.4”).
• Optional B: -95°/+110°,
  C: +360°/-360°.
• Direct drive on all axes.
• Rugged construction, solid granite base design.
• Standard 14,000 rpm spindle (upgradable to 20,000 rpm).
• Horizontal configuration for efficient chip ejection.
• Power: 220 VAC, 30A, 3ph.
• Tending robot available for 24/7 automated production.
• 27 station tool carrousel.
• CS grade precision ground ballscrews.
